Underwater Lift Bag & Floatation Bag (ULB)

Made of 750/900 GSM high tenacity both side coated synthetic fabric. Durability 10 yrs.

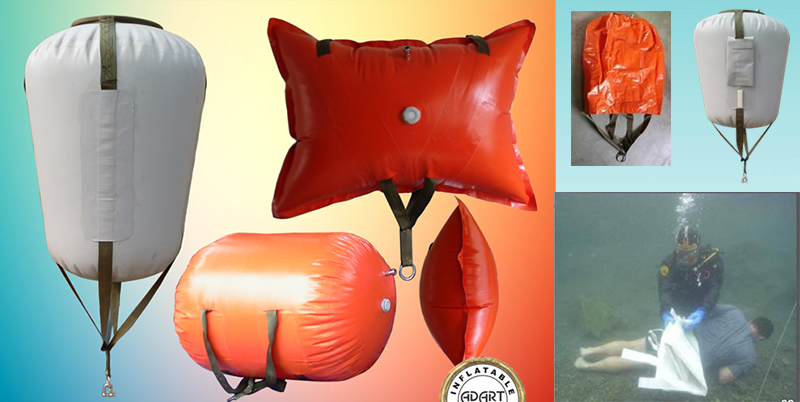

Category & Application of ULB

SL.	Category	Lift Capacity	Recommended for
1.	Parachute shape open bottom	100 kg. to 10 Ton	Drivers for rapid recovery
2.	Parachute shape close bottom	100 kg. to 10 Ton	Recovery & floatation
3.	Cylinder shape close bottom	100 kg. to 10 Ton	Floatation
4.	Pouch shape close bottom	100 kg. to 04 Ton	Floatation

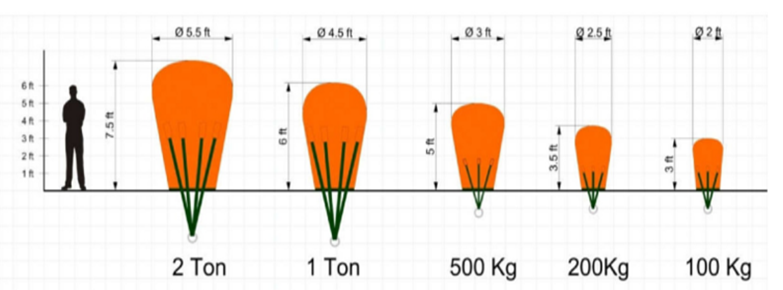

01. Open Parachute shape ULB

Lift capacity	Top diameter	Bottom diameter	Length	App. Weight	Cost @ NRI
100 kg	2 ft.	1.5 ft.	2.5 ft.	02 kg	25,000/-
200 kg	2.5 ft.	1.5 ft.	03 ft.	2.5 kg	32,000/-
500 kg	3.5 ft.	02 ft.	04 ft.	04 kg	54,000/-
01 Ton	4.5 ft.	2.5 ft.	05 ft.	12 kg	84,000/-
02 Ton	5.5 ft.	03 ft.	06 ft.	16 kg	1,22,000/-

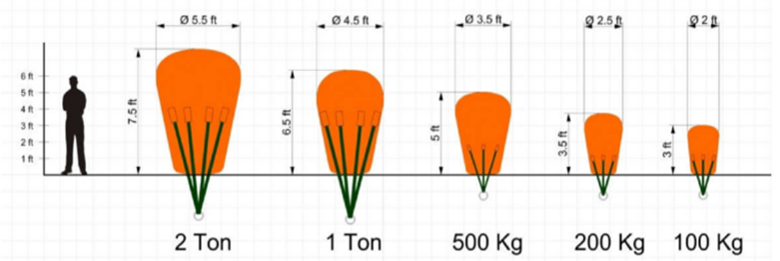

02. Closed Parachute shape ULB

Lift capacity	Top diameter	Bottom diameter	Length	App. Weight	Cost @ NRI
100 kg	2 ft.	1.5 ft.	2.5 ft.	02 kg	30,000/-
200 kg	2.5 ft.	1.5 ft.	03 ft.	2.5 kg	46,000/-
500 kg	3.5 ft.	02 ft.	04 ft.	04 kg	54,000/-
01 Ton	4.5 ft.	2.5 ft.	05 ft.	14 kg	96,000/-
02 Ton	5.5 ft.	03 ft.	06 ft.	18 kg	1,42,000/-

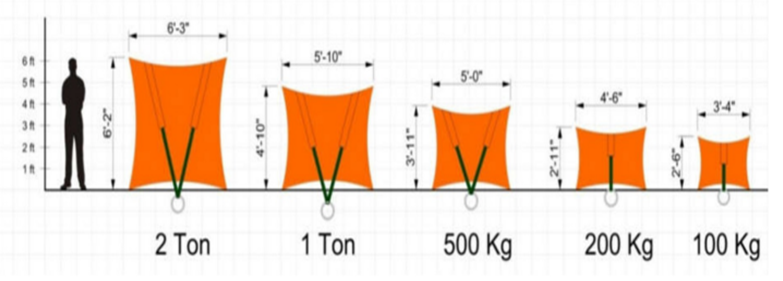

03. Closed Pouch shape ULB

Lift capacity	Dimension	App. Weight	Cost @ NRI
100 kg.	40 inches x 30 inches	3.5 kg.	26,000/-
200 kg.	54 inches x 35 inches	4.5 kg.	32,000/-
500 kg.	60 inches x 47 inches	06 kg.	45,000/-
01 Ton	70 inches x 58 inches	08 kg.	92,000/-
01 Ton	75 inches x 74 inches	12 kg.	1,26,000/-

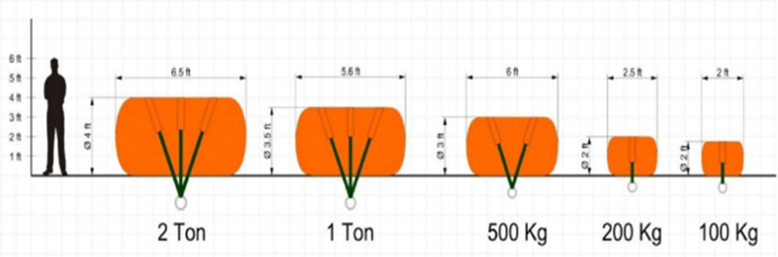

04. Closed Cylinder shape ULB

Lift capacity	Diameter	Length	App. Weight	Cost @ NRI
100 kg	02 ft.	2.5 ft.	03 kg	40,000/-
200 kg	3.5 ft.	05 ft.	08 kg	58,000/-
500 kg	03 ft.	4.5 ft.	12 kg	72,000/-
01 Ton	3.5 ft.	5.5 ft.	16 kg	1,32,000/-
02 Ton	04 ft.	6.5 ft.	20 kg	1,80,000/-
