EMS Portable Isolation Pod
EMS portable isolation pod with digital oxygen delivery device with provides safe isolation and transportation of infected / contaminated / suspected patients of COVID -19 and other infectious diseases.
Major Applications of EMS Portable Isolation Pod
Negative pressure: for transporting infected patients or patients suspected of biological contamination such as: viral hemorrhagic fever, SRAS (severe acute respiratory syndrome), smallpox, tuberculosis, meningitis, etc.
Positive pressure: for protection and transport of immune compromised patients: bubble child, aphasia, etc.

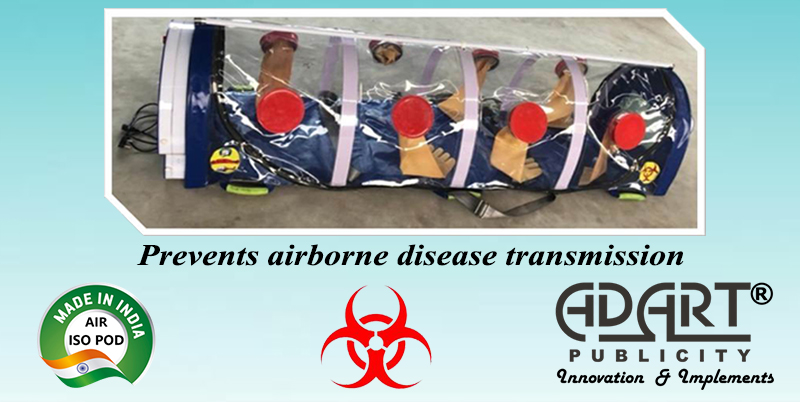

Prevention of airborne biological virus & bacterial infection

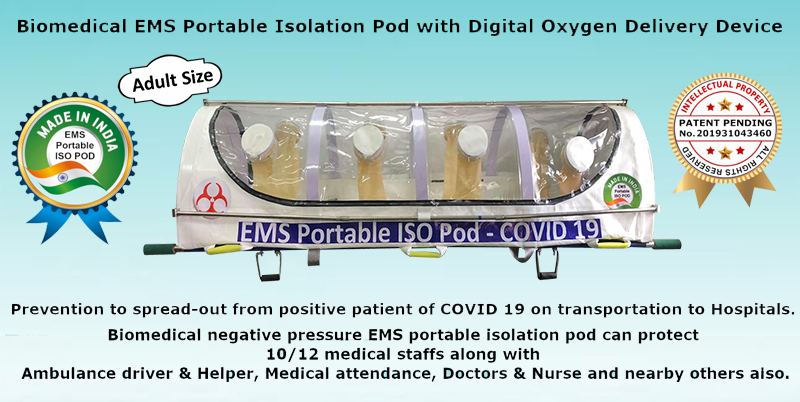

Biomedical negative pressure EMS portable isolation pod can protect 10/12 medical staffs along with Ambulance driver & Helper, Medical attendance, Doctor & Nurse and near by others also.
Biomedical EMS portable isolation pod provides safe isolation and transportation of infected / contaminated / suspected patients of COVID -19 and other infectious diseases like: tuberculosis, SARS, pneumonia, plague, viral fever such as Lassa fever or Swine flu. Ebola & etc
Biomedical EMS Portable Isolation Pod Has stand alone Negative air pressure filtration system by HEPA filter form various application such as COVID 19 in hospitals and ground or airborne ambulance transportations.
Prevention to spread-out from COVID 19 positive patient.

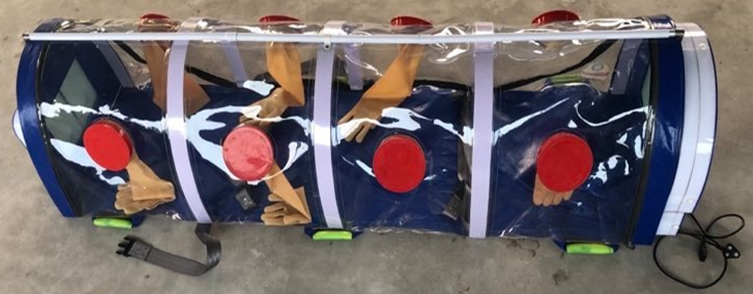

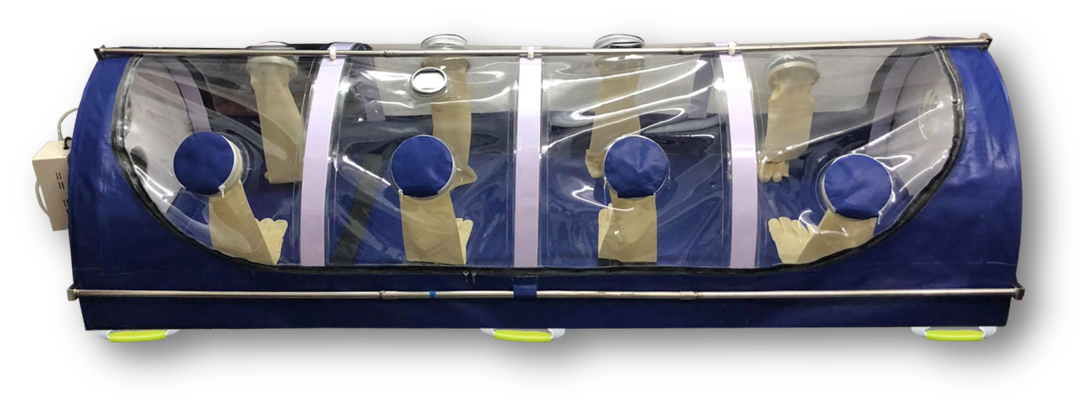

It is well equipped with its own negative pressure air filtration system, with an all around zipper and integrated 4 pair gloves on both side and one utility portal for multi channel.
Very easy to sanitize after one patient carrying.

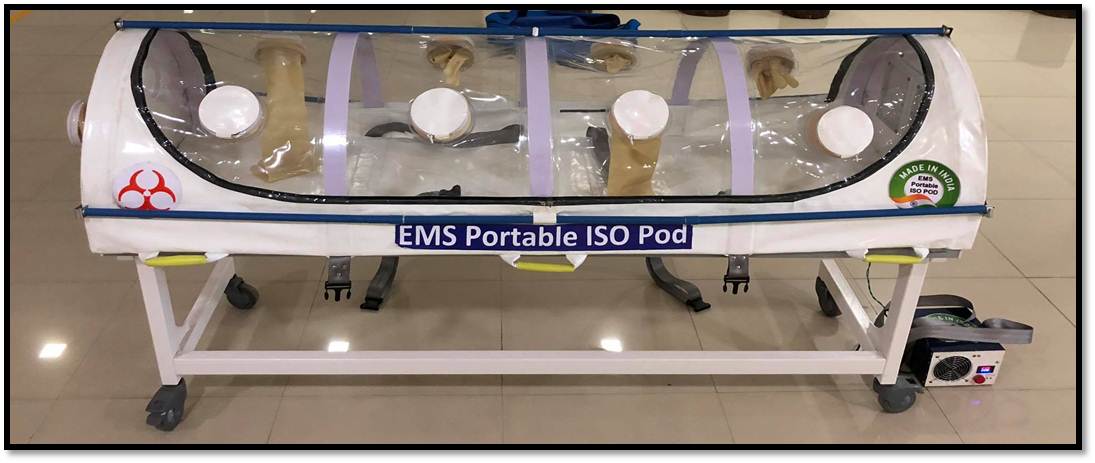

Biomedical EMS Portable Isolation Pod

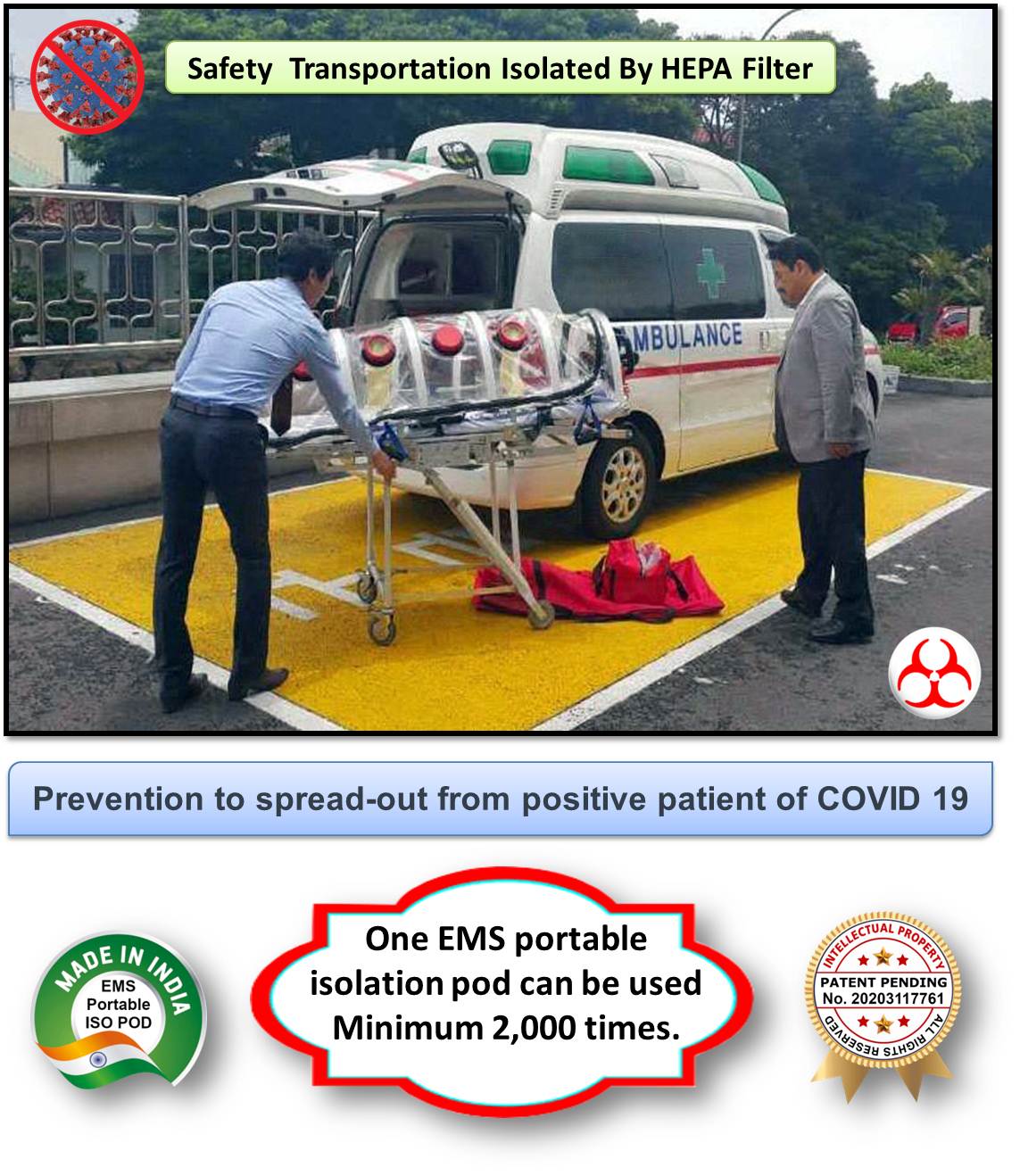

To be added to ambulance for COVID 19 positive patient transportation.
With digital oxygen Therapy Device
Only 30 min. are needed to prepare & load the patient into this EMS Isolation POD
EMS Portable ISO POD is made of clear transparent Poly Vinyl Chloride (PVC) or Thermoplastic Polyurethane (TPU) Eco-friendly high durability mildew & dust free polyester meshes with both side coated synthetic fabric of 550 GSM, Anti–UAV, waterproof and weather resistance, Glass Fiber etc.
Very easily attachment system with stretcher & hospital bed
Very easy to sanitize after one patient carrying. Best Sanitised with UVC lights as there are some electronic components which will damaged if washed in soap water
An isolation chamber is a collapsible apparatus used for avoiding unwanted contamination of harmful biological and chemical materials by HEPA filter.
Isolation chamber is well equipped with its own negative pressure filtration system to provide maximum protection and operational safety for both the contaminated person or item and the medical team.
The cover is opened by a zipper. Several ports gloves are provided to permit rapid and expedient treatment of the patient. Negative pressure isolation chamber has the benefits of getting the right conditions like light weight, no toxicity and environmentally friendly.
As the safety of health care workers is paramount when handling highly infective patients, there has been considerable discussion about the use of patient isolation pods during the evacuation of these patients.
Portable Biosafety Isolation Chamber unit is the ultimate solution to preventive spread out any infection from the highly infective patients.

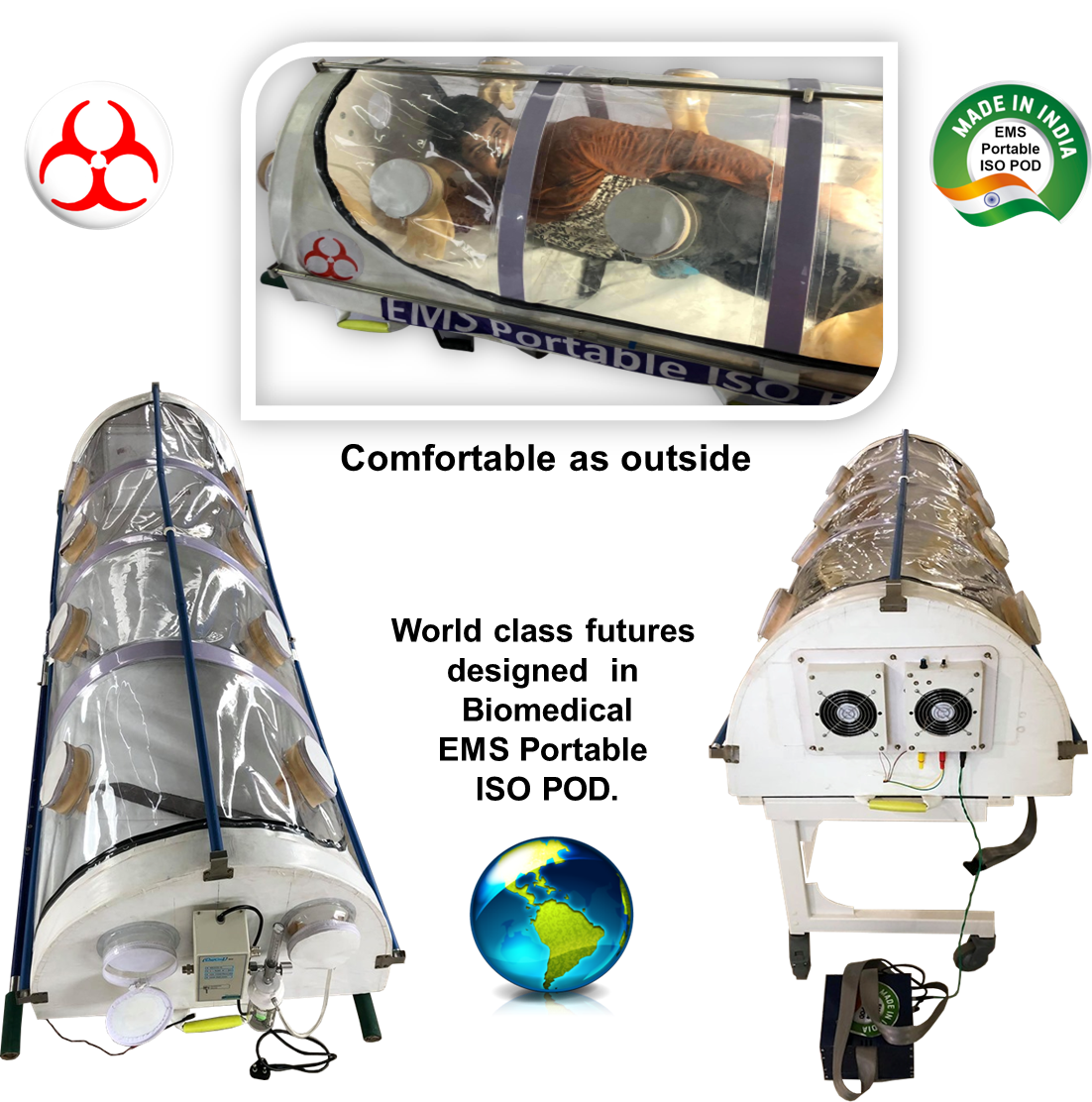

Patient’s Comfort is not compromised with very good airflow and use of transparent material so the patient do not feel claustrophobic and even the Zippers have the dual heads so that if the patient feels uncomfortable, they have the option to come out.
EMS Portable Isolation Pod Features:
- Can understand Breath Rate.
- Monitors and Display each & every Patient’s Breath.
- Each and every breath can monitored by this Visual LED Indicator.
- Possible to Understand the Breathing Pattern by this Visual LED Indicator.
- LED glows in the Inspiratory phase, so can understand the I time as well as E time.
Built in Fail Safe Mechanism
- Built in FAIL SAFE mechanism which ensures the O2 Gas flow to the patient all the time in case of POWER FAILURE or any kind of ELECTRONIC & ELECTRO – MECHANICAL FAILURE.
- Audio Visual Alarm in Low FLOW / Pressure O2 Supply
- If the Machine found Oxygen pressure is Less Than Equal One Bar, it will give an Audio - Visual Alarm . After appear this Alarm, the Machine may run for 5 to 15 minutes depend on the Flow Rate. Also it will Alarm, if the flow rate is too low.
Monitors and Display each & every Patient’s Breath
EMS Portable Isolation Pod Advantages
Advantages for Ambulance Use:
Patient Transportation without chance of infecting the attending medical team
- Surface Ambulance
- Air Ambulance
Dimension 1960 (L) X 560 (W) X 430 (H) mm.
Advantages for Hospital & Quarantine Use also:
Safe isolation of infected / contaminated / suspected patients of infectious diseases like COVID -19, tuberculosis, SARS, pneumonia, plague, viral fever such as Lassa fever or Swine flu. Ebola & etc.
Dimension 2032 (L) X 762 (W) X 508 (H) mm.
COVID 19 Positive Patient Transportation
Advantages for Use:
- Easy & fast to set up
- Low chances of damage
- Patient safety with comfort
- Transparent clear portable modular structure
- Very cost effective vis-vis a permanent negative isolation room
- Enough Access ports and gloves for equipment to be use from outside.
- Digital display monitor
- Multi port & Utility port
- Patient Attendant calling system
- Better approachability Primary , Secondary and also Tertiary care hospitals having limited critical care and isolation facility.

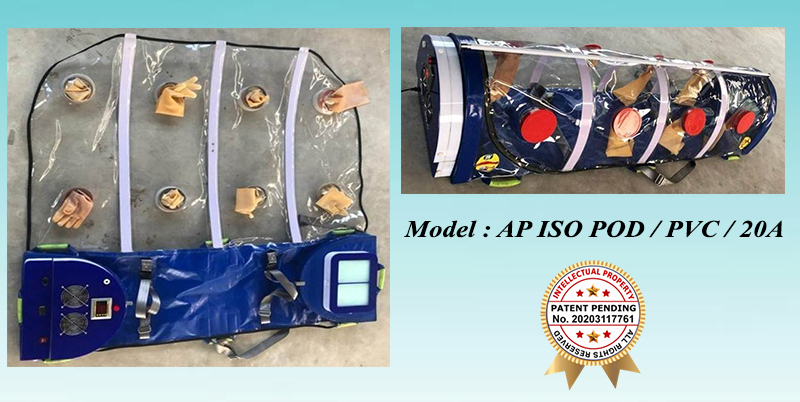

Technical Specifications (Model : AP ISO POD / PVC / 20A)
| Colour | Blue & White / Grey & White |
| Dimension External | 98" (L) X 34" (W) X 24" (H) |

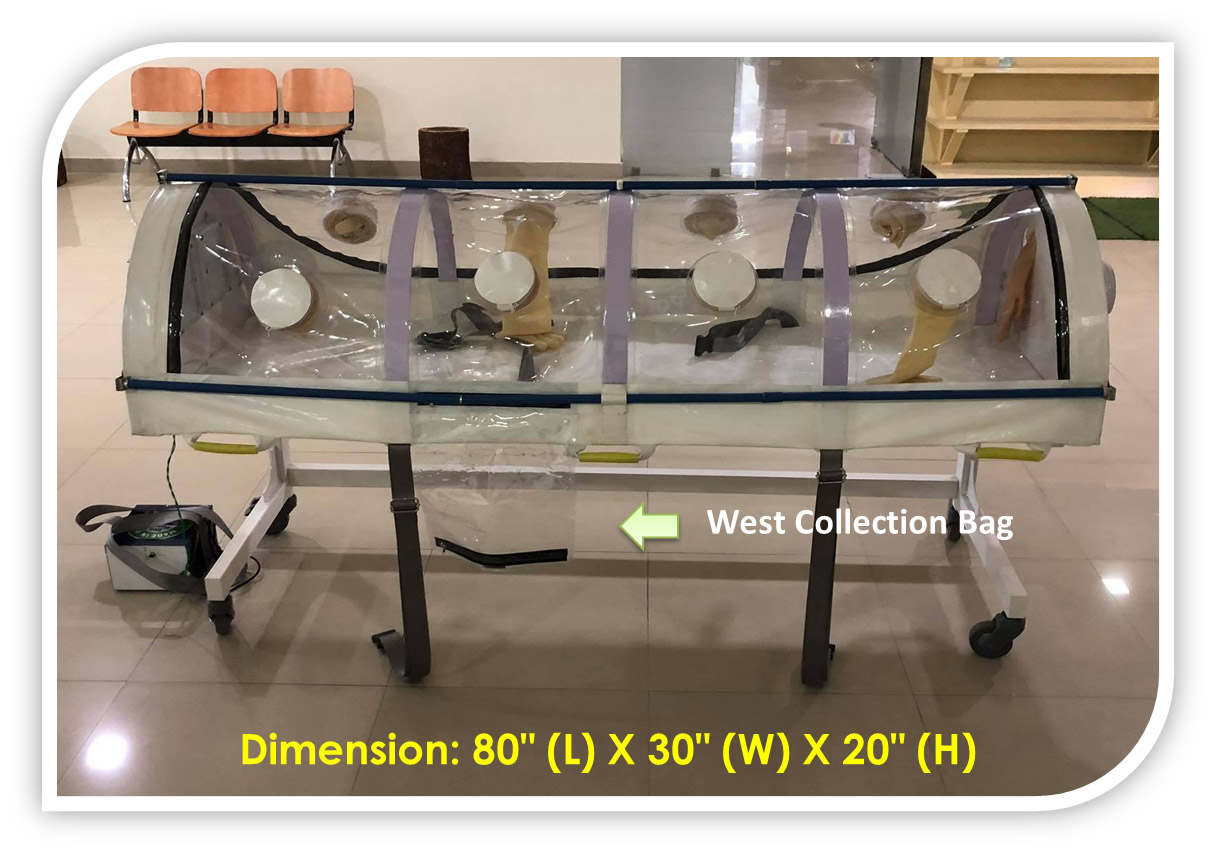

| Dimension Internal | 80" (L) X 30" (W) X 20" (H) |
| Nursing System | With Alarm and Red Light Indicator |
| Waste Collection | 14” Silicon Rubber Sleeve with Silicon garter to close |

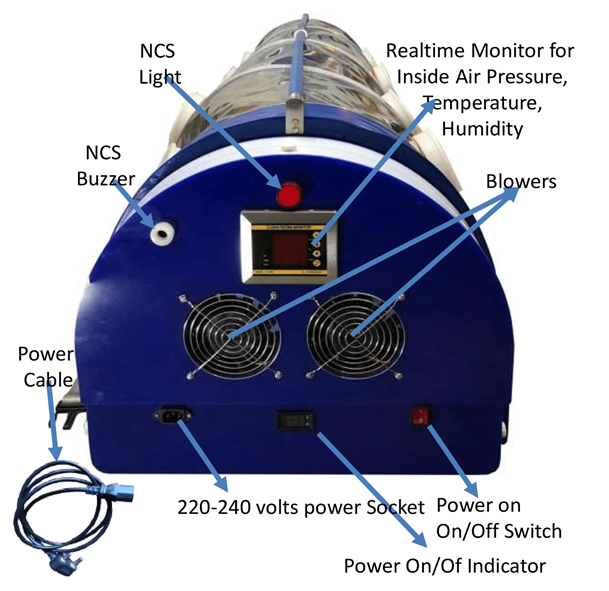

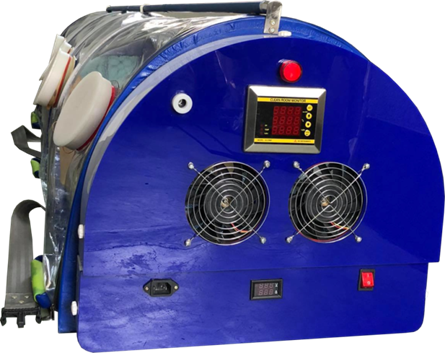

| Display | Internal Air Pressure, Temperature and Humidity |
| Airflow rate | 10.2 m3p/h |
| Ventilation inside | Not less than 100L/min. |
| Atmospheric Pressure | 75KPa to 106 KPa |
| Negative Pressure | Maximum 2-3 mbar inside the chamber, to ensure no airflow goes outside and to ensure one-way flow through HEPA filter only |
| Relative Humidity | ≤93% |
| Noise | Less than 72 dB (A) |
| Power supply | AC 220-250 Volt, 50 Hz or 24 Volt DC |
| Battery Charger | Included with cable |

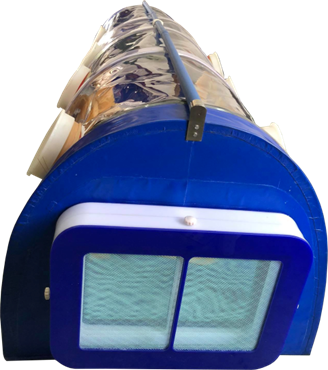

| HEPA Filter Cardge | Disposable 1Pair A4 size on top and bottom |
| Filter Cover | Sandwiched PVC net |
| Filter Efficiency | 99.995% Efficiency at 0.3µm |
| Multi-Port Option | Using 34cm long surgical gloves on head side |
| Gloves | 64cm long 3 pairs multiple access points to the patient |
| Straps | 2 Straps for patients and 2 for stretcher / bed |
| Bearing Load Capacity | 150 |
| Carrying handle | 6 Pair around the chamber |
| Gross Weight | 16 Kg approximately |
| Packaging Size | 32cm X 62cm X 92cm |
Stay away from strong electromagnetic interference sources
