Heavy Duty Floating Safety Barrier & Trash Boom

Major Application: Dam, Sea Beach, Lake, Tunnel, River, Port, Coastal Area & Ocean etc.

Floating Trash and Debris Control Solutions

High density marine grade polyurethanes rigid foam pouring containment.

To prevent the water pollutions from plastics & garbage and drowning unnatural deaths in strong water current by high tidal waves in flood or in mega festivals, we developed & designed the common trash boom for any kind of Clam, Moving & Fast water.

Versatile Applications & High Durability in outdoor Durability 5/10 yrs. In any kind of water.

A Total Floating Trash & Debris Control Solutions

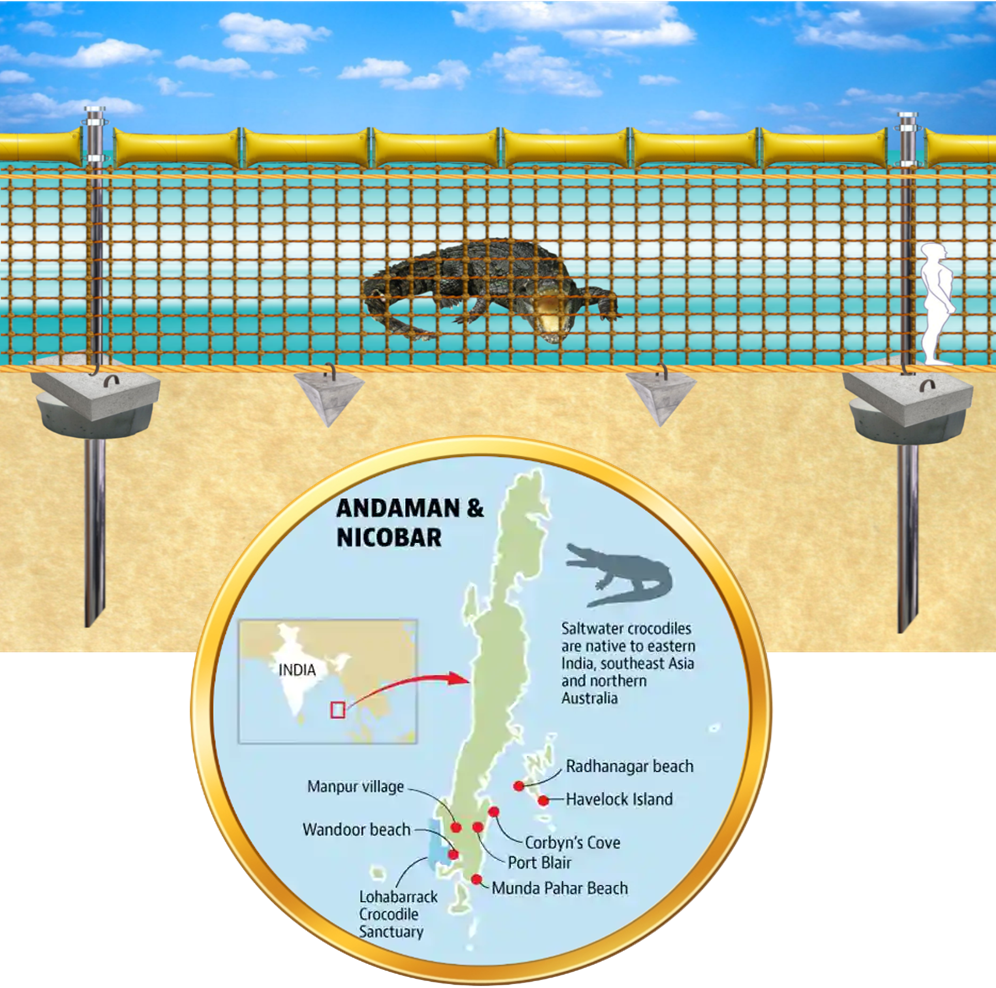

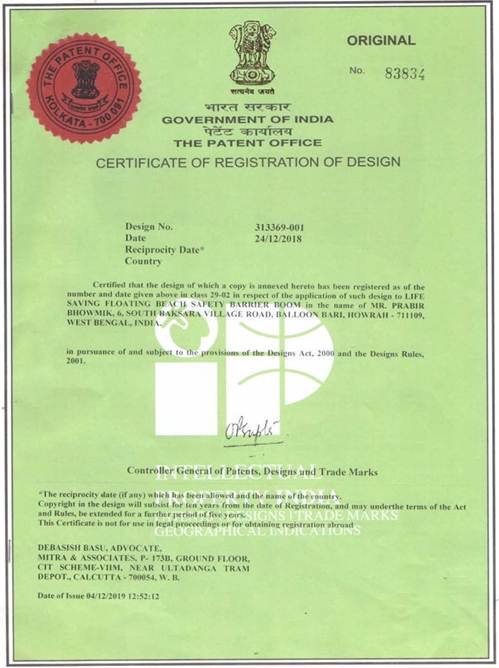

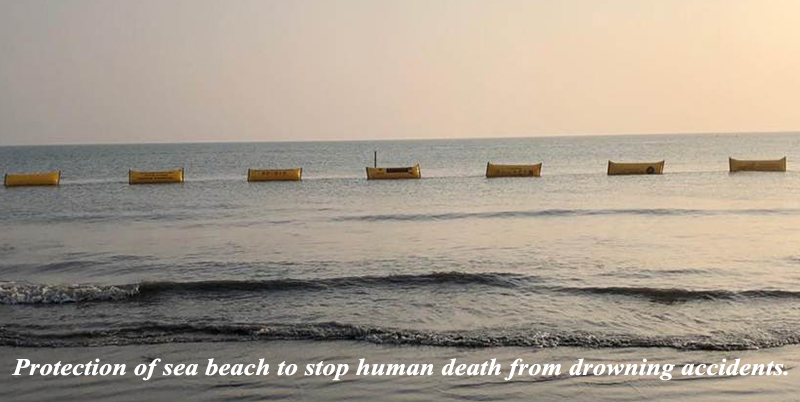

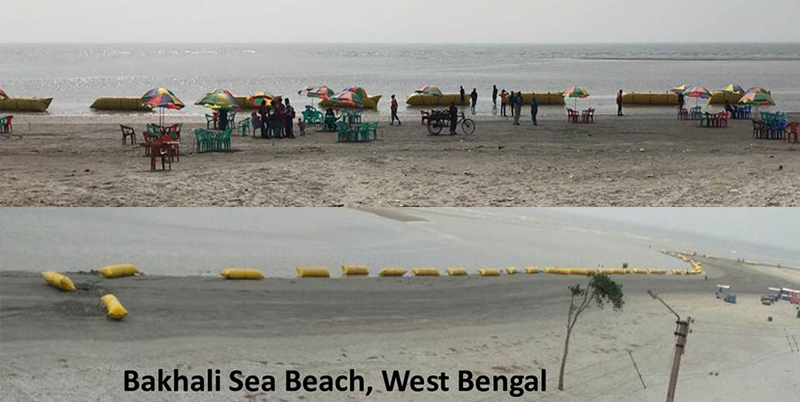

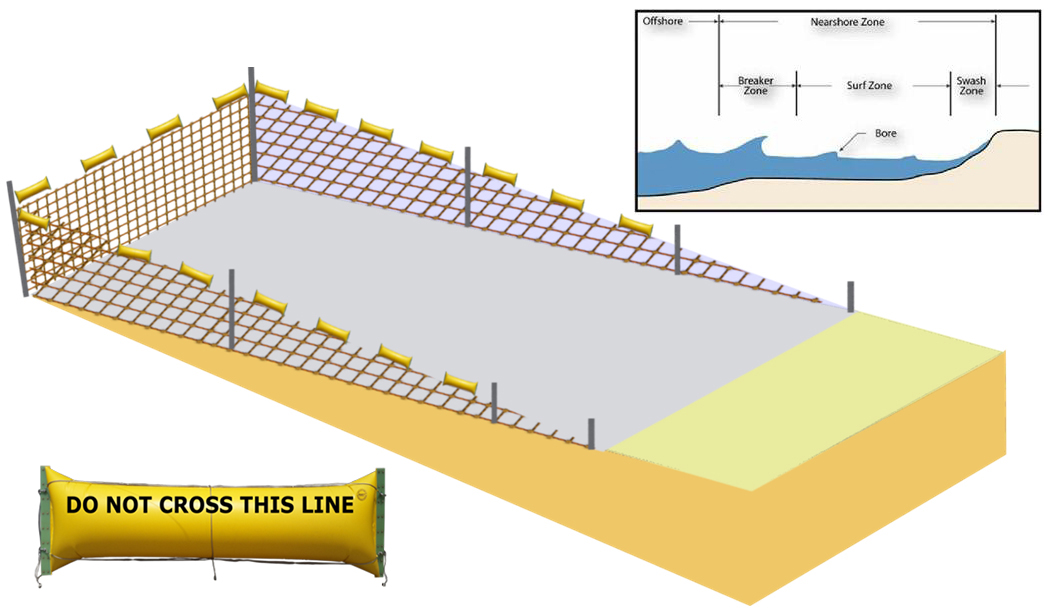

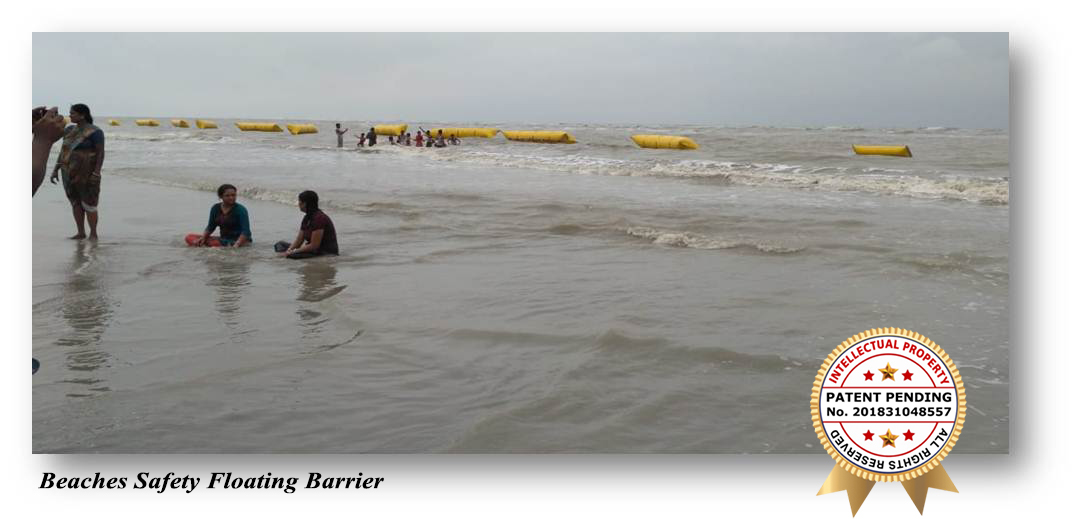

A first in the world for sea beaches, saving swimmers from being swept away, stop shark or crocodile attacks. It is made of patented foam which is as hard as rock. Being used for Beaches Safety, Signal Barrier, Dam Safety Barriers and other novel application like trash collection on large rivers & costal areas etc.

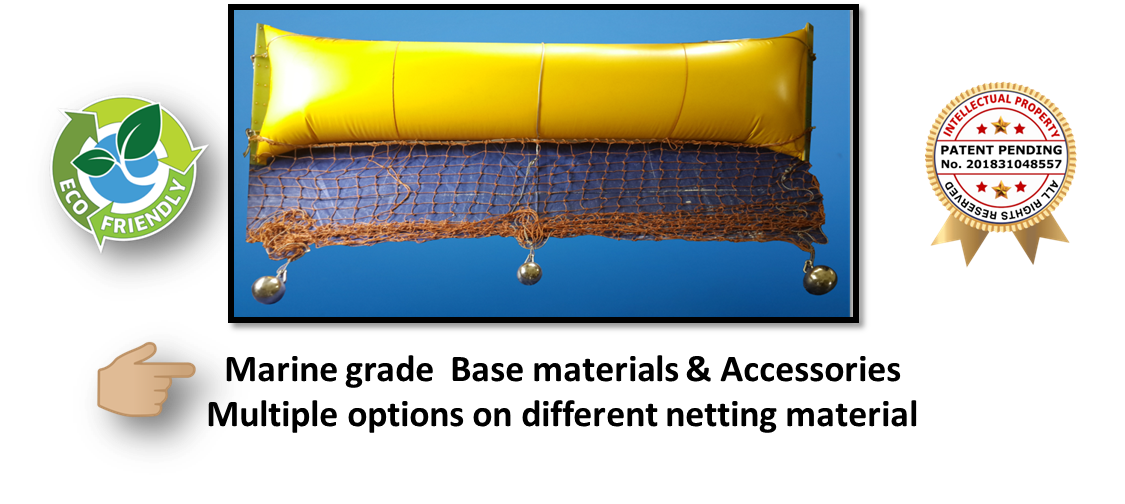

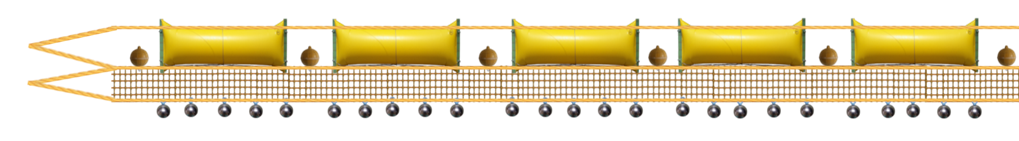

Floating downstream Barrier cum net boom used to arrest speeding bodies in flood.

We developed standard & common design & shape for different type of water like:

• 1. Calm Water Boom
  (No current, Mostly Calm Water, Limited / No Waves or Tides)
• 2. Moving Water Boom
  (Currents, Some Waves / Tides, Mild Water Conditions)
• 3. Fast Water Boom
  (Fast Currents, Frequent Waves / Tides, Offshore Areas)

Water Type	Water Conditions	Applications
Clam Water	No Current Mostly Calm Water Limited/ No Waves or Tides	Calm Water Bodies Marinas Residential Ponds or Lake
Moving Water	No Current Some Waves / Tides Mild Water Conditions	Rivers & Ports Streams Moving Water Ponds & Lakes
Fast Water	Fast Current Frequent Waves / Tides Offshore Areas	Coastlines Offshore Areas Fast Moving Rivers

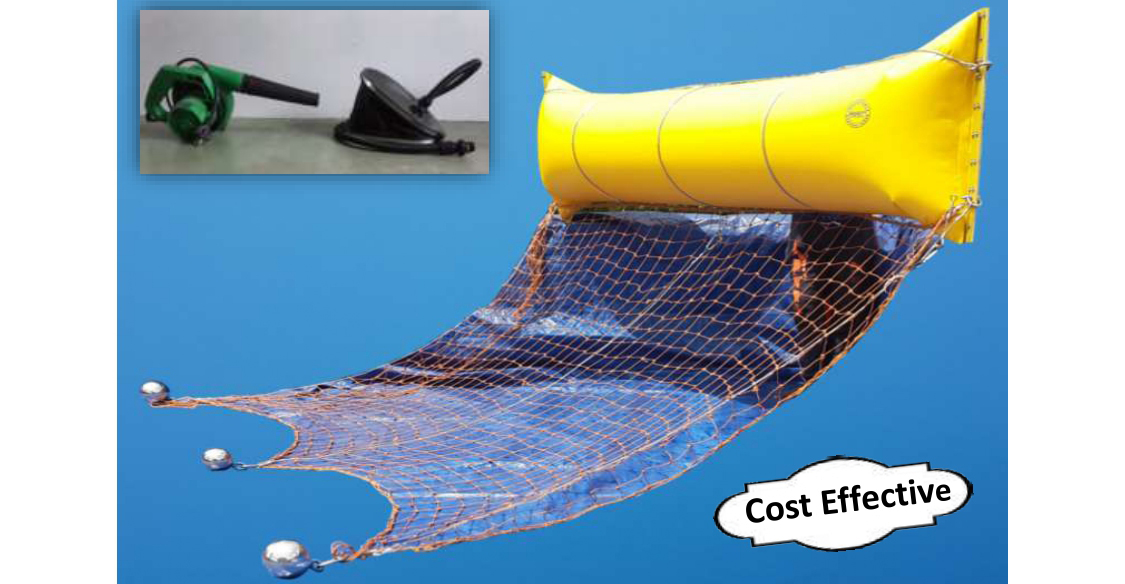

For temporary installation

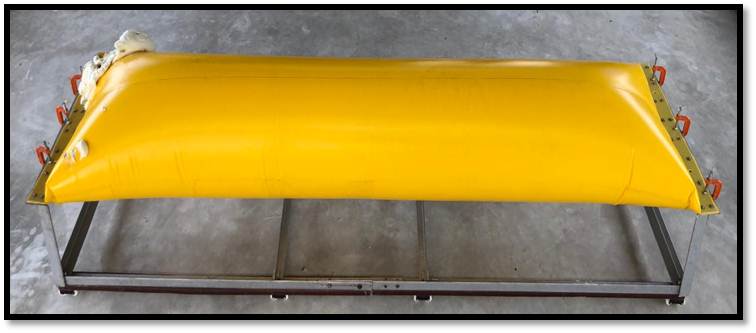

Air-filled inflatable debris net boom are re-usable, durable & very easy to inflate or deflate.

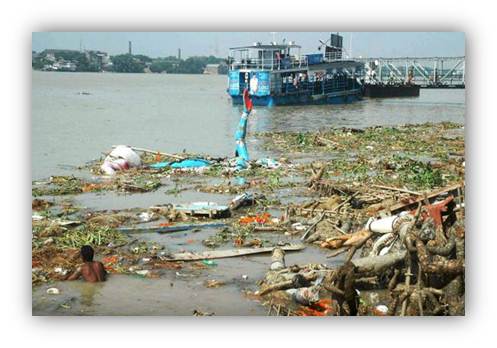

Floating Trash & debris control solution only by debris net booms to prevent the water-pollution. 90% of plastic polluting our oceans comes from just 10 rivers in India.

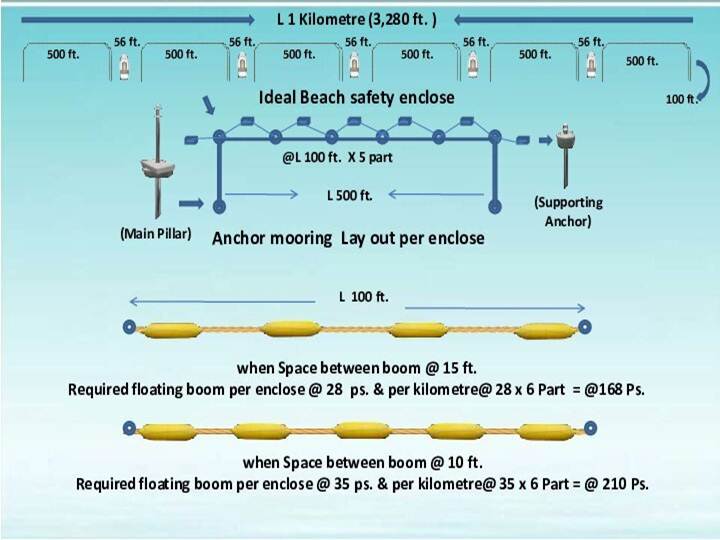

Required booms per Kilometer/1,000 meter/3,280 ft.

Option	When space between the boom	Floating boom alignments	Extra Buoy For trash boom
A	Inter-link joining the Boom	330 Ps	On both side
B	@ # 3’- 3” ( 01 Meter)	250 Ps	250 Ps
C	@ # 05 ft.	218 Ps	218 Ps
D	@ # 10 ft.	164 Ps	328 Ps

Heavy Duty Floating Safety Barrier & Trash Boom Requirements

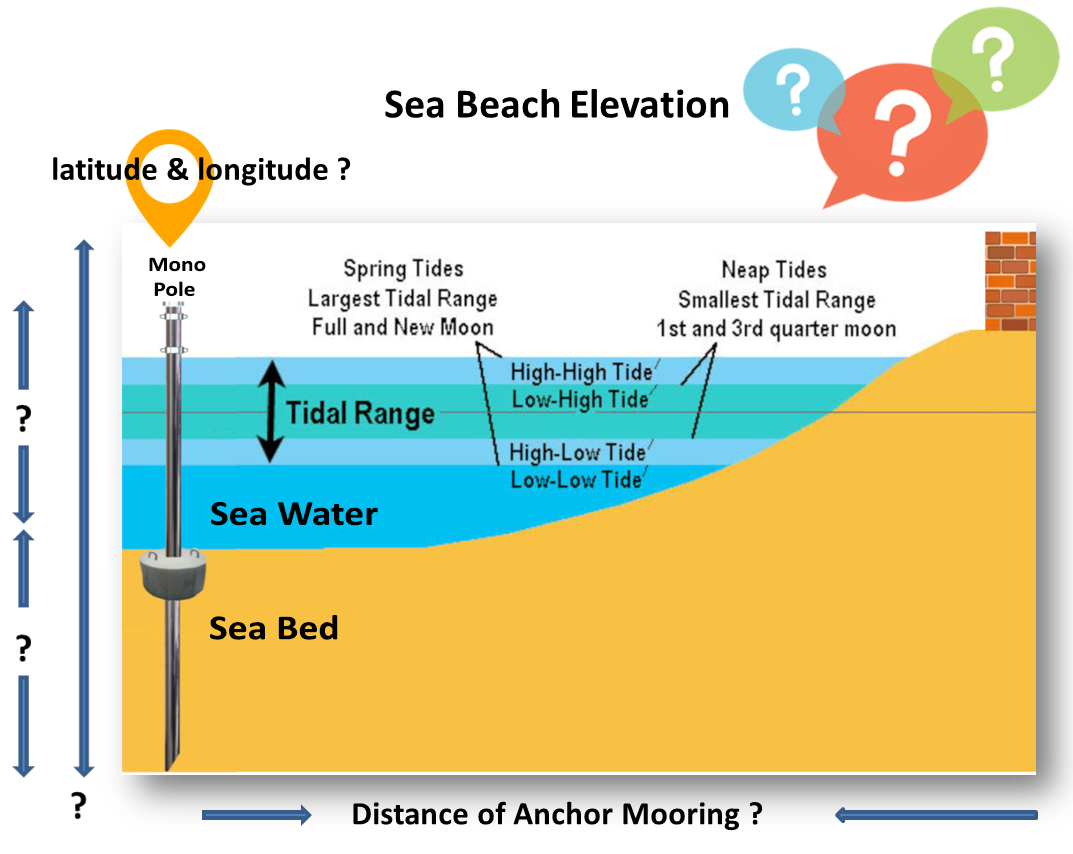

Please share with us as following :

• (01) Proposed beach length total covering area Horizontal:
• (02) Vertical distance of anchor mooring:
• (03) latitude & longitude of anchor Mooring:
• (04) Mono pole height under the sea bed:
• (05) Mono pole height in the Sea water:
• (06) Tidal range maximum in Low Tide:
• (07) Maximum tidal range on full moon High Tide:
• (08) Total length:

Estimate of floating boom per meter 2021-22

Item	Heavy Duty Beach Safety Floating Barrier/ Trash Boom
Dimension	Diameter 18 inches X Length 3 meter
Shape	Semitic cylinder shape.
Boom Cost	@ Rs. 12,000/- to Rs.20,000/- per meter of boom.
Inflation	Eclectic Portable Blower & foot Pump for Air-filled inflatable boom (Temporary Installation)
Net Height	2 ft.
Net Mesh	4" X 4"
Including	Hardware Fittings: Boom fabrication with 4 line 3 mm SS super flexible wire rope with fittings on both sides by marine grade Glass Fibber sheet & SS O-Ring.SS long Dee-shackles (8 mm Rod): 4 ps. for each Boom. /Blower one pc.
Excluding	Anchor Mooring, Transportations & Packaging, Required PVC Buoy, Duty & Taxes.
Minimum Order	100 Ps
Lead Time	45 working days.
Payments	100% advance

Air filled & PU foam filed both are available

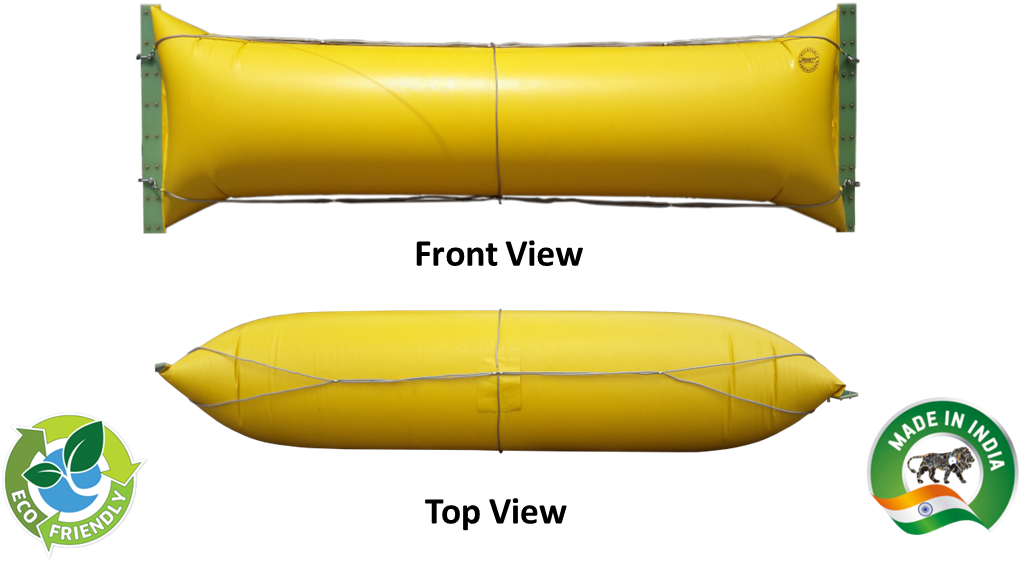

Heavy Duty Floating Safety Barrier & Trash Boom
Specifications & Parameter

Product Item	Heavy Duty Safety Floating Barrier & Trash Boom

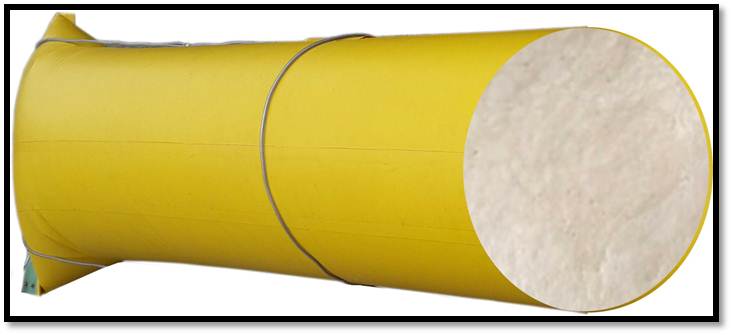

Containment	Floating boom filled by high density marine grade polyurethanes rigid foam.
Dimension	Diameter 18 inches X Length 03 meter / D 46 cm. X L 300 cm. /
Shape	Symmetric cylinder shape.
Base colour	Orange & Yellow.
Floating Height	Man Height from the sea bed with adjustable system
Fabric	Heavy duty polyester meshes both side PVC/PU coated marine grade synthetic fabric with high tensile strength.
Fabric Weight	890 ± 0.5% GSM (app. 900 GSM)
Thickness	0.75 ± 0.05 MM
Breaking Strength	WARP: 450 Min. & WEFT: 400 Min. (Unit Kg. /05 cm.)
Tearing Strength	WARP: 80 Min. & WEFT: 70 Min. (Unit Kg. /05 cm.)
Adhesion	12.5 Min. (Unit Kg. /05 cm.)
Water Profanes	@ 220 PSI NO LEAK (Unit MM)
Feature	Tear- Resistant, Waterproof, Anti-UAV, Mildew free
Fabric Seaming	Seaming by Radio Frequency / Hot air Welding machine
Fabrication Hardware	Marine grade anti-corrosion super flexible SS 03 mm wire rope, SS Nut Bolt & Washers, Dee Shackles.
Accessories	Marine grade T 04 mm. X W 60mm. X 1524 mm. Epoxy glass fibber sheet.
Durability	05 & 10 years.
Warranty	One year.

Temporary & Permanent Barrier on both option are available.

In Monsoon Flood

Floating downstream Barrier cum net boom used to arrest speeding bodies/ human beings flowing with the current in carcasses & implement speedy alimentation to prevent contamination of water and aqueous bodies and also to prevent the water pollution.

Floating downstream Barrier cum trash boom filled by Air or PU marine grade rigid foam.

Heavy Duty Net Mesh 18cm. x 18cm.

By 18mm POLYPROPYLENE ROPES:

High strength at lower weights, Highly resistant to acids and alkalis, Floats in water, does not absorb water, Low elongation, High abrasion resistance due to special construction, Better knot ability.
