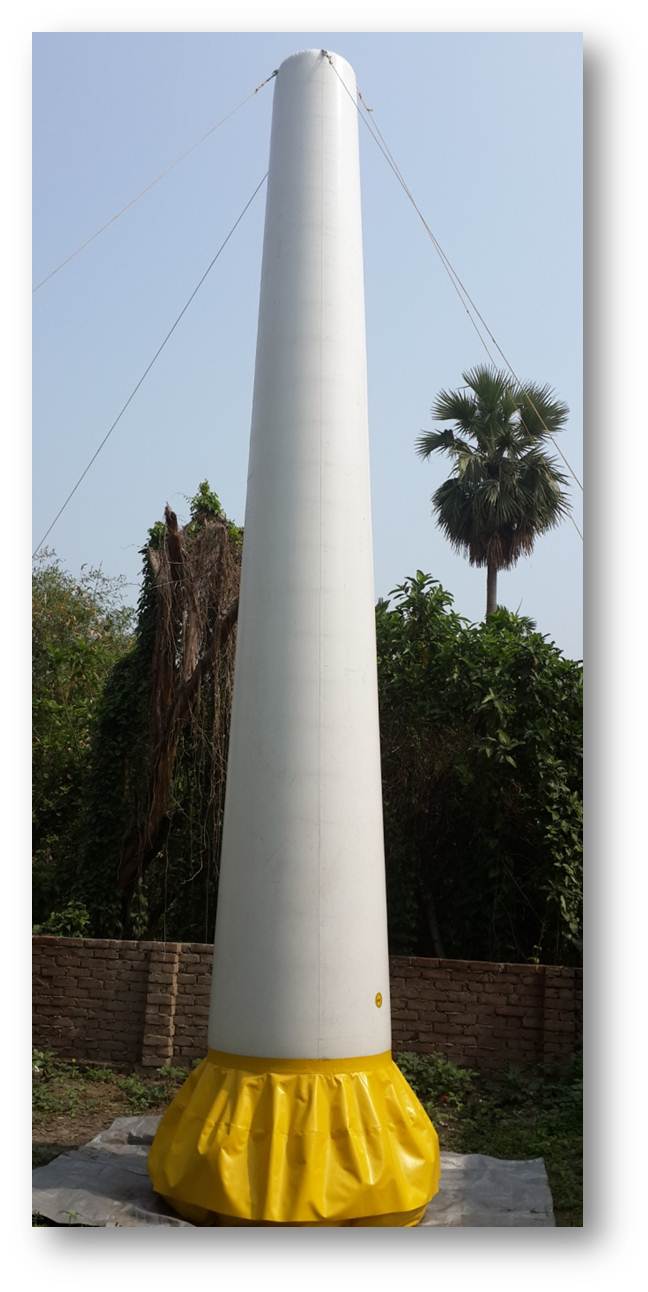

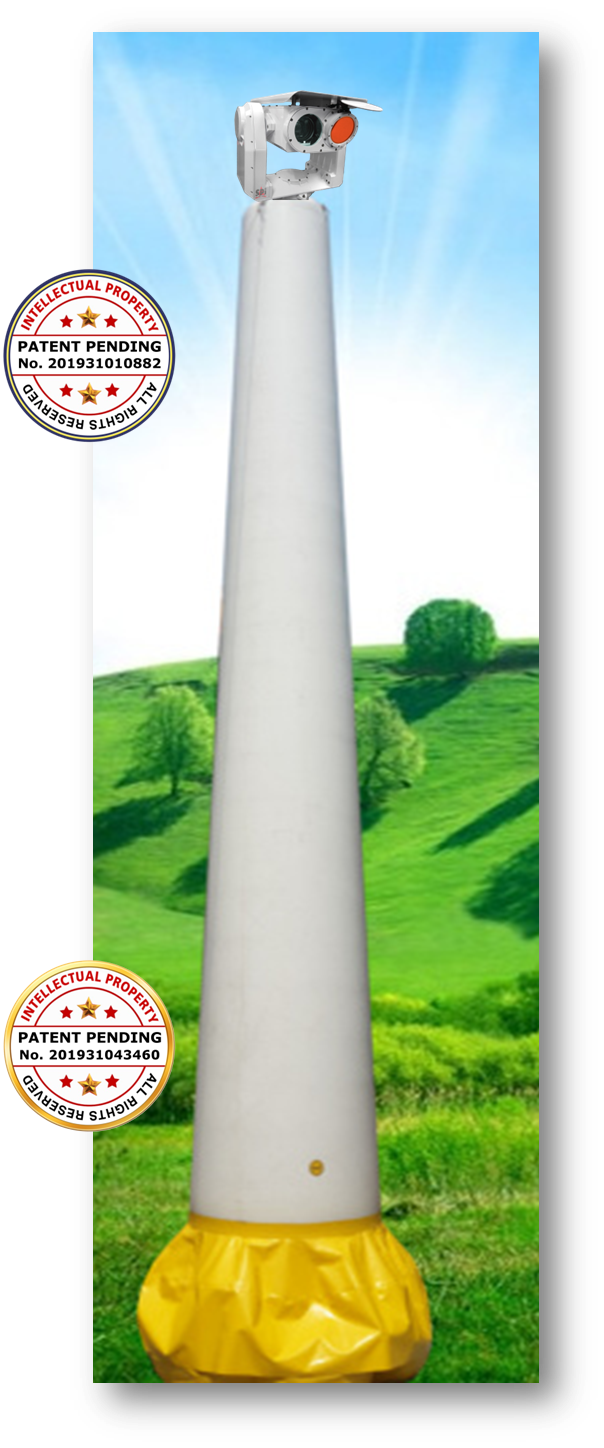

Portable Self-inflating Tower
Self-standing & Auto-refilling Airborne Navigation Antenna
The mast have strong enough to carry the payload about 50 kg. in stand-alone positions in rough weather conditions with the wind speed of 40 km./hour
- High durability in 10/20 Yrs.
- Tower Height 26’ 40’ 60’ & 80’
Portable Inflatable Tower is an incredible alternative to steel tower.
Ideal for petrol aerial-surveillance at the mast height 40 ft.
Aerial Surveillance Security Managements
Substitute to physical barrier system on border area to minimize the casualties of soldiers.
And also
Communication Technology & Airborne Navigation antenna for Disaster Managements. Or in Emergency Requirements.
Install the portable tower any where as you desire
FEATUERS
UAV
Anti Dust
Portability
Self-Standing
Fire Retardant
Auto Air-refilling
Low Maintenance
Mast Diameter 20"
Height 26' 40' 60' & 80'
Color : White, Grey & Green
Payload Capacity 40 to 50 Kg.
Put it any where as you desire
Steel weir guy-rope for anchoring
High durability in outdoor 10/20 Yrs.
Very easy to install by three heads only
Weather Resistance (-30° C to +70° C)
Stable to erect in different weather
Condition by day & night (24 X 7)

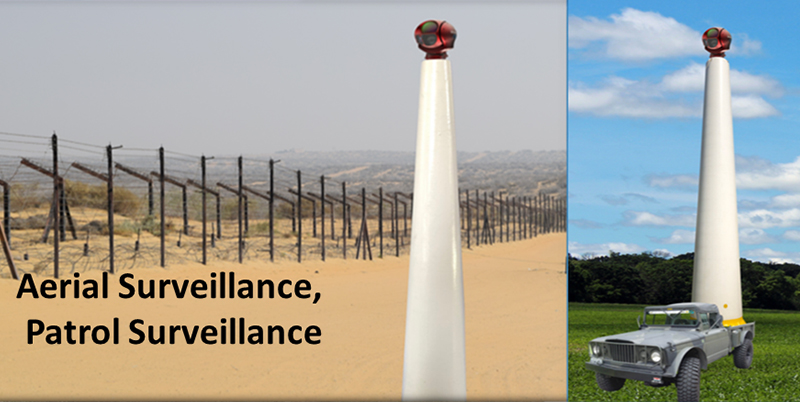

Petrol Aerial-Surveillance.
Available Stabilized Platform : Azimuth PAN & TILT dual-axis Gyro RC Gimbal for mounting sensor, IR Thermal PTZ Camera & Portable Rader.
Tower Height 26' 40' 60' & 80'
Versatile Applications in different weather conditions In Land surface, Water & Hills all over India
Aerial surveillance & Communication

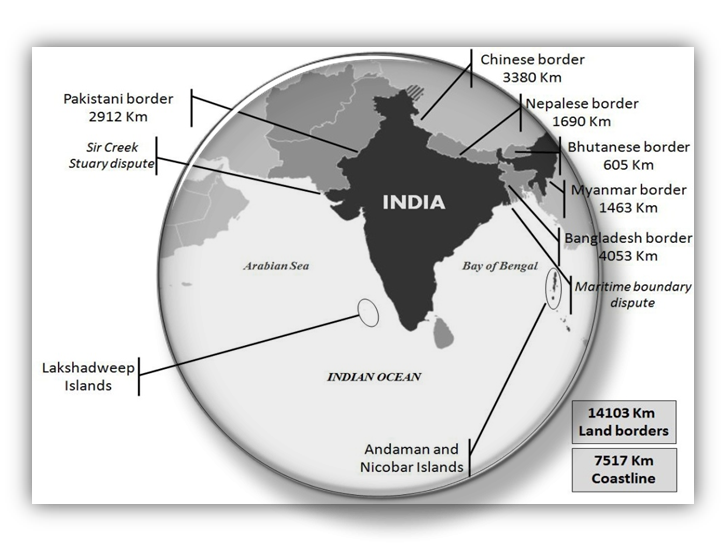

Petrol Surveillance Border Area (Surface Ground & Hills) Coastal & Maritime (LOC) & Disaster Managements etc.
Inflatable Tower Resist the Causality of Physical Border Security
The movement captured by the Sensors can be relayed to Control-rooms and Headquarters immediately Along with smart phone connectivity.
Aerial surveillance, communication and data storage devices
To prevent smuggling & any other illegal activities
Portable Inflatable Tower is the more efficient & effective in Aerial-Surveillance Technology,
Better than Drone & RC Aero Blimp Tethered Aerostat Blimp & Helikite in the various Meteorological Environments.
Portable Tower is an incredible alternative to steel tower

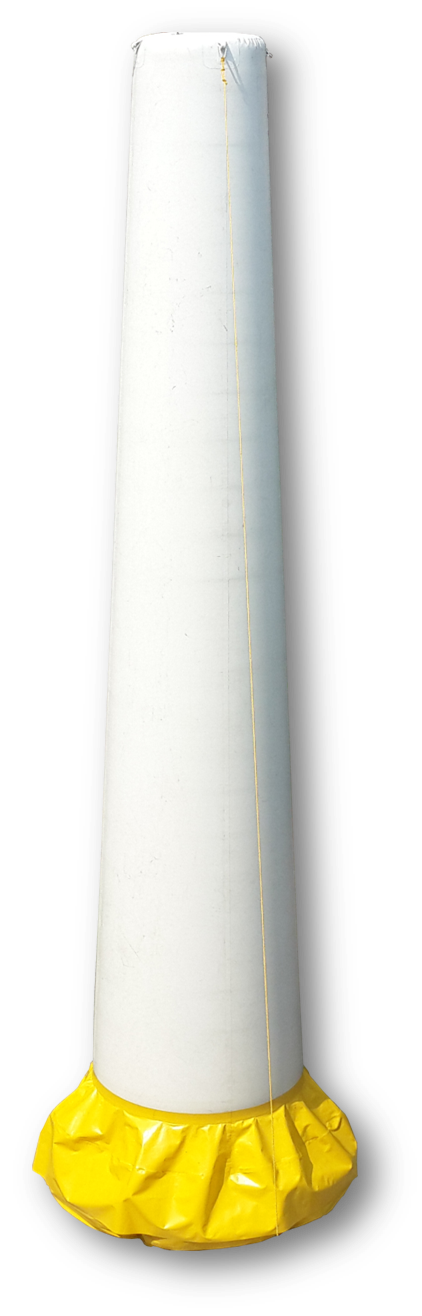

Dimension of Portable Self-inflating Tower
| Tower Height | 26 Ft. | 40 Ft. | 60 Ft. | 80 Ft. |
| Top Diameter | 20 " | 20 " | 20 " | 20 " |
| Bottom Diameter | 4 ' | 4 ' | 6 ' | 8 ' |
| Outer Base Dia. | 6 ' | 6 ' | 8 ' | 10 ' |
| Envelop Part | 4 Part | 4 Part | 4 Part | 4 Part |
| Sand Bag Pocket | 6 Part | 8 Part | 8 Part | 10 Part |
| Required Sand Bags | 12 | 16 | 20 | 30 |

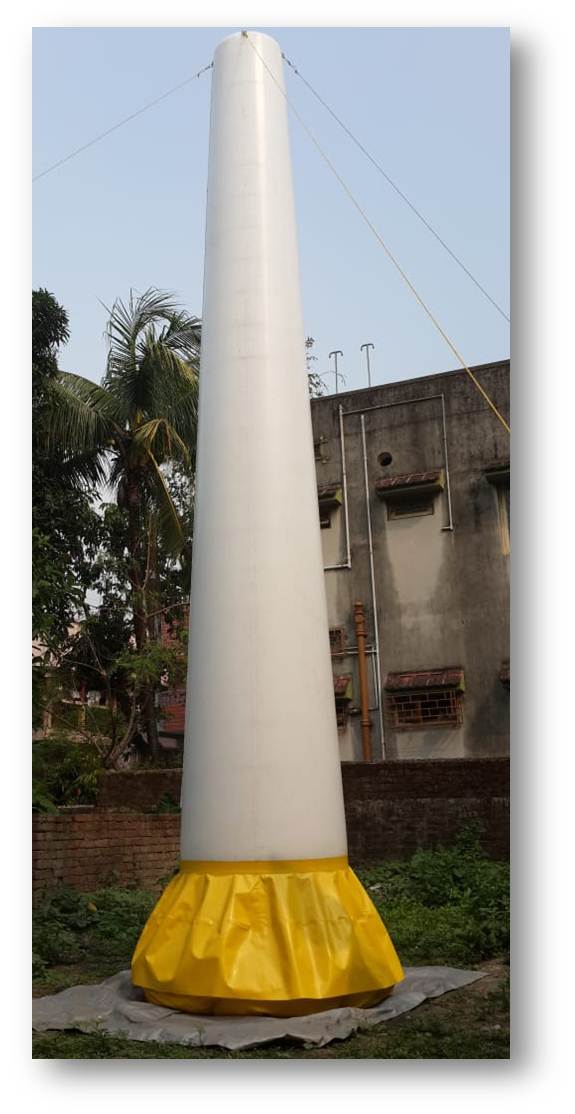

Tower Inflation & Mounting
Portable Self-inflating Tower Fabric Parameter & Specifications
| Fabric Parameter | Specification |
| Total Mass/ Weight (GSM) | 490 & 400 (App.) |
| Thickness in mm | 0.4mm (App) |
| Colour Available | White, Grey, Green |
| Surface Finnish Gloss/ Mat | Varnish both sides |
| Media Size Wide x Length | (W) 2.67 m X (L) 50-350 lm |
| Working Temperature | -30 / +70OC |
| UV & Weather Resistance | UV & Weather Resistance |
| Fire Retardant | M2/NFP 92-507 |
| Durability in Outdoor | 10 Yrs. |
| Breaking/Tensile Strength Wrap/Weft | 230/220 Da N/5 cm |
| Tear Strength Wrap/Weft | 20/20 daN |
| Adhesion Strength Wrap/Weft | 8/8 DaN/5 cm |
| Elongation at Break Wrap/Weft | <1%/<1% |

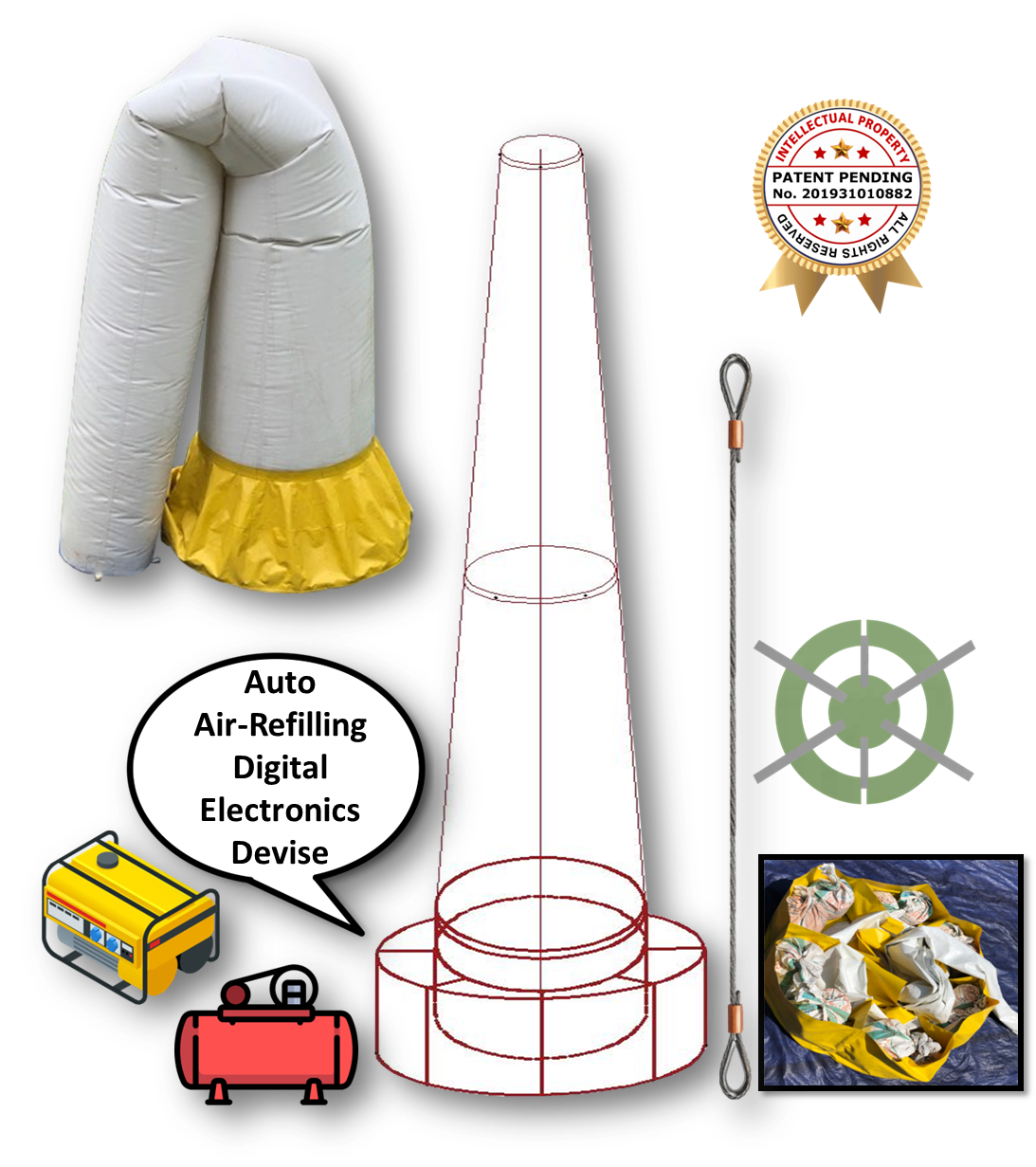

| Including | Portable Blower, Compressor, Portable Generator, Auto-refilling electronics devise, S. S. Ware Guy rope, S.S. Shaklee & Clips, Carry Bag, Repairing Kits & Glue along with the Manual. |
| Excluding | Stabilized platform: Water proof 2 axis RC Gimbals Transportation & Duty & Taxes. |
Except gyro radio control gimbal

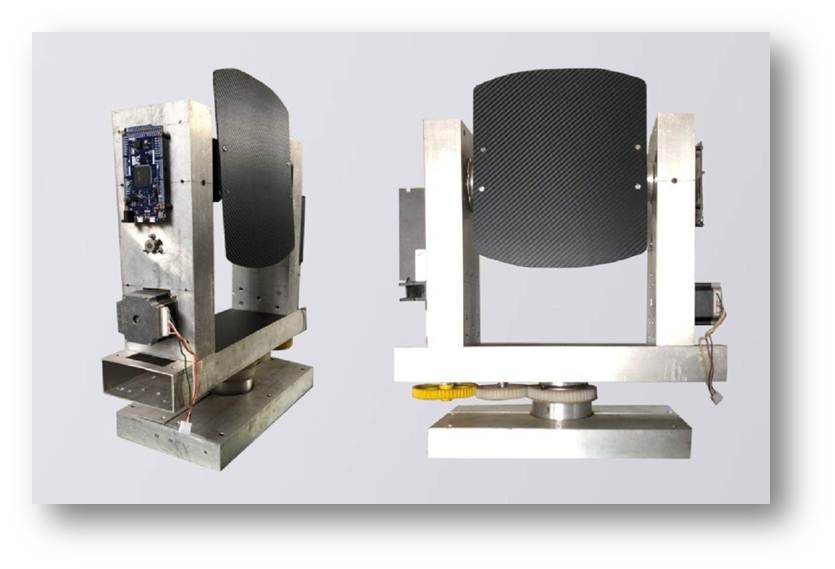

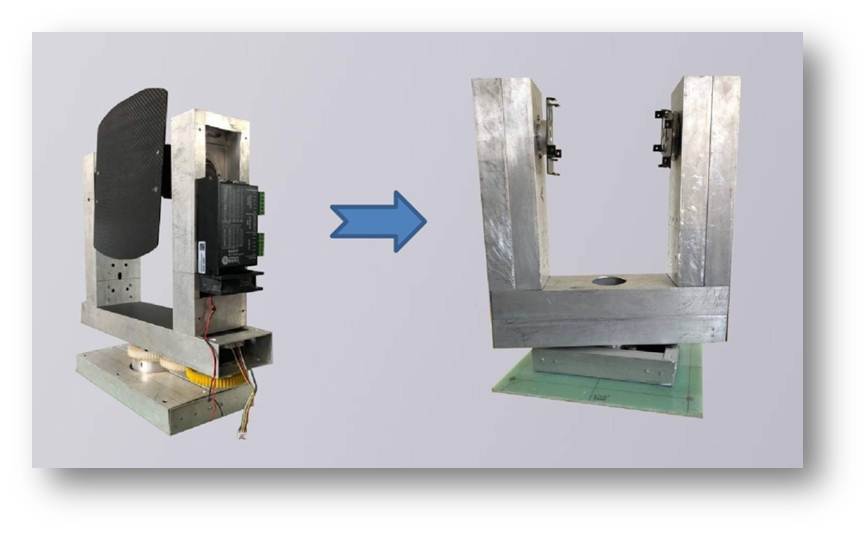

Radio Control Duel-axis Waterproof Gimbal
Gyro stabilization of platforms for cameras, antennas, weapons, sensors, lasers, portable redder, video tracking, geo-referencing, ground & maritime Aerial surveillance security.
Azimuth and elevation axes for LOS (line-of-sight) control (Pan-Tilt).
Gyro stabilized optical detection platform as a kind of high accuracy of line-of-sight stabilization system, can provide panoramic range detection and tracking.

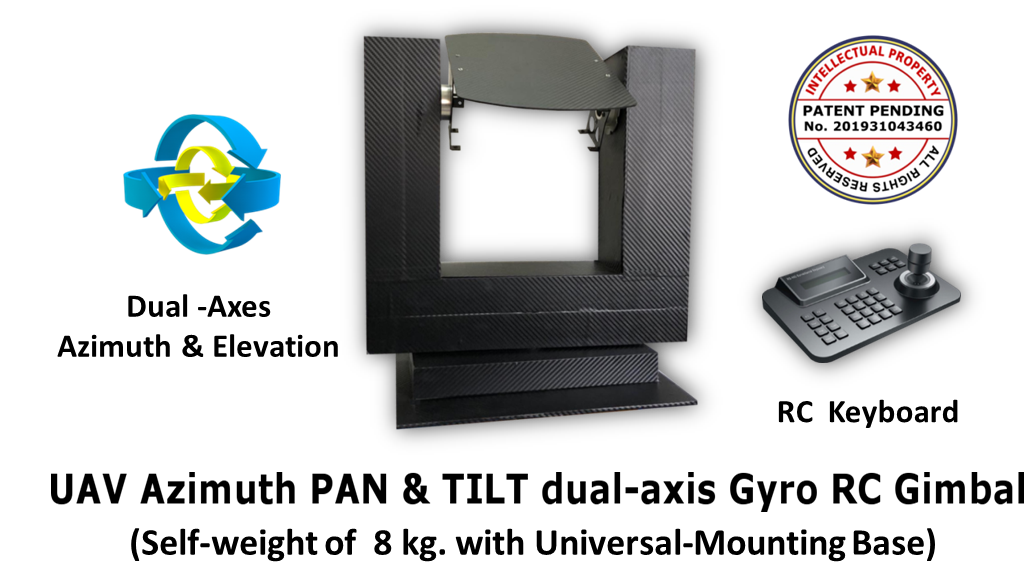

UAV Remote controlled Waterproof Azimuth Gyro Stabilized Platform-Mount
